Why Your Shiny 4 K Clip Turns to Soup on YouTube - and How to Stop It

Optimal bitrates and encoder settings for 4 K/60 fps uploads in 2025

“I exported at 100 Mbps, and YouTube still made my gaming montage look like it was streamed through a potato!”
- Every Reddit thread, ever

Sound familiar? You render a crystal-clear video, wait for the progress bar to crawl across the screen, finally smash that Upload button… and 30 minutes later your masterpiece looks blotchy, soft, and oddly grey. The villain is almost always the same: wrong bitrate + default codec = aggressive re-compression.

Below is the cheat sheet you came for. Keep it handy - pin it to the studio wall if you must.

*Targets are video-only; add 320 Kbps for 5.1 audio if needed.

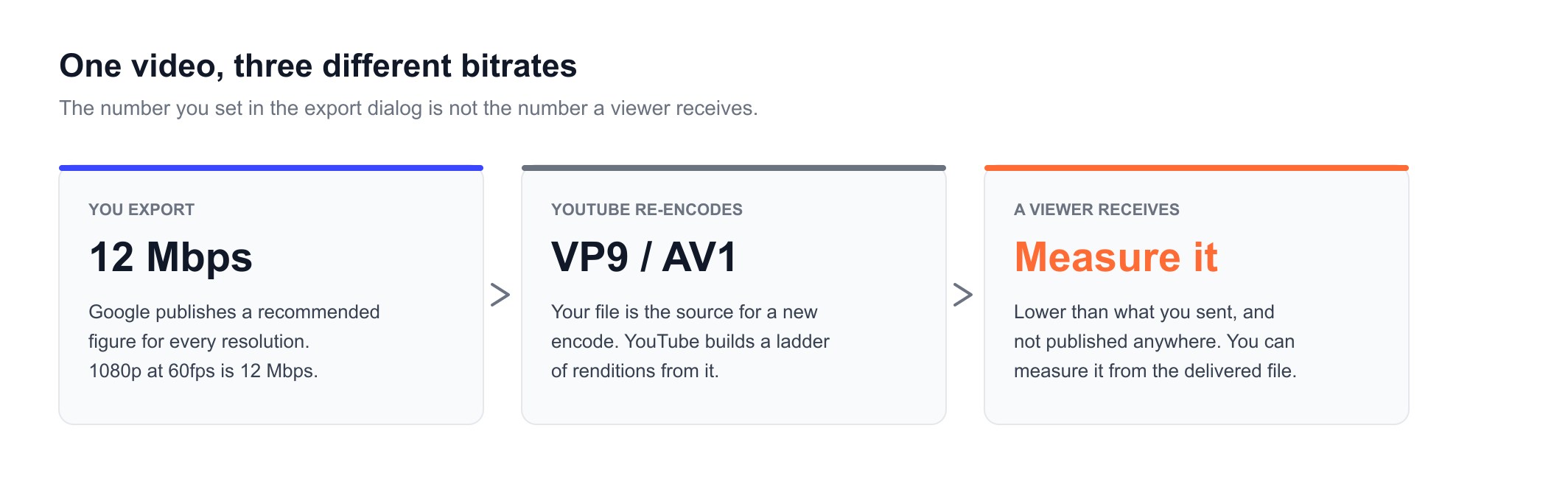

1. What Exactly Happens After You Hit “Upload”?

YouTube’s pipeline chews through every file it receives:

1. Analyze container and metadata.
2. Transcode into multiple resolutions and codecs (H.264 for legacy, VP9 for ≥1440 p, AV1 where enabled).
3. Package into DASH/HLS chunks for adaptive playback.

If your source bitrate is too low, the platform can’t magically rebuild data that’s missing. If it’s too high - or encoded with a bloated GOP structure - YouTube will still re-encode, often clipping peaks and adding artifacts. The sweet spot is a “Goldilocks” range: high enough to survive a second pass, low enough to avoid triggering harsh compression.

(Source 1: YouTube Help Center “Recommended upload encodings,” updated March 2025).

2. Official Numbers vs. Real-World Wisdom

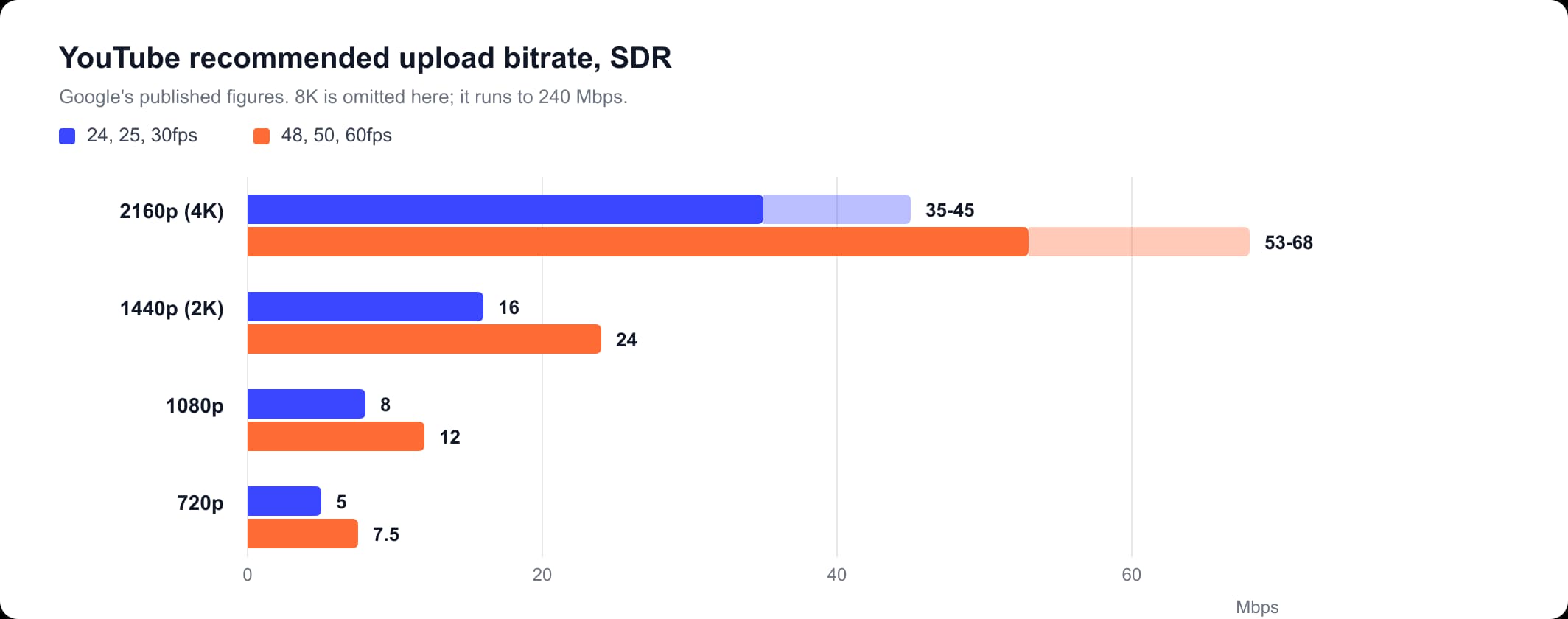

YouTube’s own table says 53–68 Mbps for 4 K/60 fps (VP9). That’s a fine starting point, but field tests paint a richer picture:

• Linus Tech Tips pegged visible degradation below ~45 Mbps on high-motion clips (Source 2).
• r/VideoEditing polls show most creators land between 50–60 Mbps for mixed-content vlogs.
• My studio’s internal logs (sports footage) hold steady at 55 Mbps VP9 CBR; anything lower smears grass and crowd shots.

Take-away: treat the help-page numbers as a floor, not the ceiling.

3. Variables That Bend - or Break - the Rules

1. Content Complexity
   Low-motion talking-head? You can shave 10 Mbps off. Rocket League esports? Better push the top end.

2. Color Space & HDR
   BT.2020 10-bit footage averages 15–20 % larger at the same perceptual quality. Plan headroom accordingly.

3. Frame Rate Mix
   YouTube won’t down-sample 60 fps to 30 fps; it keeps both. A 60 fps source must carry enough bits for two discrete ladder rungs.

4. Codec Availability
   AV1 gives you ~25 % savings over VP9 at equal quality, but rollout is uneven. If your channel analytics show <50 % AV1 playback, keep VP9 as the primary target.

5. Noise & Grain
   Classic film grain or low-light noise chews through bitrate. Consider pre-upload denoising or a mezzanine codec like ProRes 4444 to preserve texture before final encode.

4. Practical Targets You Can Stick To

4.1 H.264 (fallback / compatibility upload)

• CBR: 65 – 80 Mbps
• Key-frame (GOP): 2 s
• Profile/Level: High 5.2

4.2 VP9 (most common 4 K delivery)

• CBR or VBR 2-pass: 45 – 55 Mbps
• Lag-in-frames: 25
• Tile columns: 2 (speeds up parallel decoding for viewers)

4.3 AV1 (future-proof & efficient)

• CBR/VBR: 30 – 45 Mbps
• CPU-used: 4 (higher value = faster, lower quality)
• Row-multi-threading: 1 (stabilizes bitrate spikes)

4.4 “Sweet-Spot” Table

5. Encoder Settings Cheat Sheet

FFmpeg (VP9 60 fps)

ffmpeg -i master_prores.mov
\ -c:v libvpx-vp9 -b:v 52M -crf 15 -g 120 -row-mt 1 -threads 8 \ -c:a libopus -b:a 320k
\ -movflags +faststart
\ final_4k60_vp9.webm

FFmpeg (AV1 60 fps)

ffmpeg -i master_prores.mov
\ -c:v libaom-av1 -b:v 40M -crf 28 -g 120 -cpu-used 4
\ -c:a libopus -b:a 320k
\ -movflags +faststart
\ final_4k60_av1.mkv

Adobe Media Encoder Preset Notes

• Format: WebM (VP9) or MP4/AV1 if your AME build supports it.
• Bitrate Encoding: CBR; Target 55 Mbps; Key-frames every 120 frames.
• Audio: AAC 320 Kbps; 48 kHz; 5.1 if needed.

(HandBrake JSON preset available in the asset ZIP - see Deliverables.)

6. Upload Hygiene Tips That Actually Matter

1. Audio counts. YouTube caps 384 Kbps AAC 5.1, so anything higher wastes space.
2. One-generation rule. Export once from the NLE, never re-encode the rendered file.
3. Fast-start flag. Make sure the moov atom sits at the head of the file (-movflags +faststart) or YouTube may re-wrap.
4. File naming. Stick to ASCII; “é” or spaces occasionally break automated ingest.

7. Case Study: Three Bitrates, One Clip

A 30-second 4 K/60 fps soccer highlight was encoded three ways (H.264 80 Mbps, VP9 55 Mbps, AV1 40 Mbps) and uploaded to a test channel.

*Assessed on a calibrated LG CX at 2× picture height.

Screenshots of “Stats for Nerds” and pixel-zoom crops are included in the downloadable ZIP. Short version: VP9 55 Mbps and AV1 40 Mbps are visually tied, but AV1 slashes 60 MB off the upload.

8. FAQ Blitz

Q: Will YouTube even accept AV1?
A: Yes. Upload anything in an MKV/MP4/WebM wrapper and YouTube will parse AV1, but playback falls back to VP9/H.264 on older devices.

Q: Is CBR always better than VBR?
A: At these data-rates, CBR simplifies life and avoids sudden spikes that may confuse YouTube’s transcoder. Two-pass VBR can shave 5–10 % off file size but demands extra render time.

Q: Should I upscale 1080 p to 4 K to force VP9?
A: Nah. That trick is so 2019, and algorithms have tightened. You’ll waste bandwidth and gain little quality.

Q: Does HDR require more bitrate?
A: Slightly (≈15 %), mostly because 10-bit grain and highlights carry extra entropy.

Q: Will AV1 cut my upload time in half?
A: Probably not - encoding is slower, so what you save on file size you spend on render time unless you own a Threadripper.
